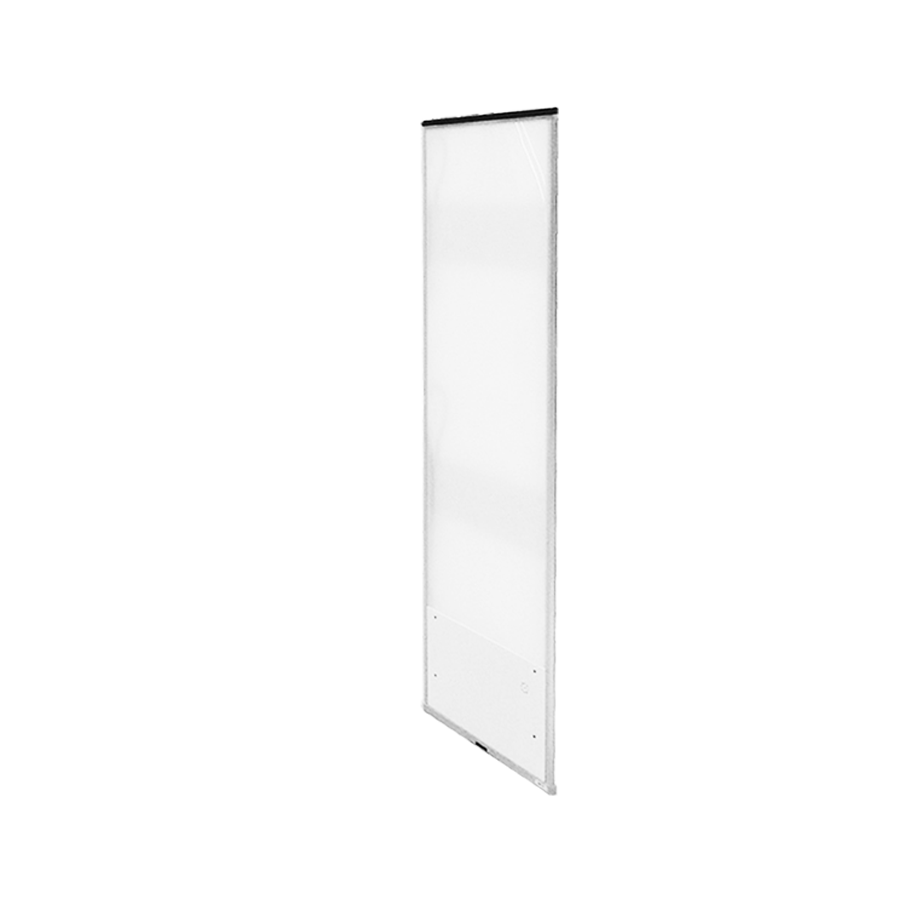

AdvanGate

RFID pedestal for loss prevention

AdvanGate is a loss prevention system based on RFID UHF. It comprises a pedestal with RFID antennas, an embedded reader, controller and alarm combining EAS and RFID functions in one system.

AdvanGate detects the tagged items that pass between the pedestals, verifies if those items have been paid, and triggers an acoustic and/or visual alarm if any item has not been paid:

Checks the EAS bit of NXP chips.

Checks if the EPC code includes a pre-defined pattern that signals that the product has or not has been paid.

Check against the POS database if the product has been paid.

Check bulk theft: trigger an alarm if a certain number of tags belonging to the same category are read in a certain time period (e.g. a few seconds).

AdvanGate

RFID pedestal for loss prevention

AdvanGate is a loss prevention system based on RFID UHF. It comprises a pedestal with RFID antennas, an embedded reader, controller and alarm combining EAS and RFID functions in one system.

AdvanGate detects the tagged items that pass between the pedestals, verifies if those items have been paid, and triggers an acoustic and/or visual alarm if any item has not been paid:

Checks the EAS bit of NXP chips.

Checks if the EPC code includes a pre-defined pattern that signals that the product has or not has been paid.

Check against the POS database if the product has been paid.

Check bulk theft: trigger an alarm if a certain number of tags belonging to the same category are read in a certain time period (e.g. a few seconds).

Product Features

AdvanGate comprises a master unit and a slave unit:

The master unit has an integrated reader, a controller, an alarm, a visual alarm indicator and antennas.

The slave unit comprises antennas and visual alarm.

As shown in the following illustration, slave units can be connected to master units.

AdvanSafe works with any hard and softGen2 RFID UHF tags.

AdvanSafe includes configurable parameters for minimizing false alarms.

Radiation pattern

To minimise the detection go products inside the store, AdvanGate has a radiation diagram wide in one direction and narrow in the other (perpendicular) direction



Connection to AdvanCloud

AdvanGate can be optionally connected to AdvanCloud, cloud-based software platform.

The products that trigger an alarm can be shown on a smartphone managed by store staff or security staff, in order to:

Thwart theft attempts.

Register the event:false alarm, thwart theft, theft.

This information can then be analysed for business intelligence purposes, such as:

Theft attempt by day and time of day.

Products that suffer more theft attempts.

Stores with more theft activity.

Mechanical specification

Technical specification

Models and Accessories

SKU numbers/Models

  • ADGT-msEU-p13-WH-100 AdvanGate - master unit, single sided, EU frequency band (ETSI), Advantenna-p13 in white.
  • ADGT-mdEU-p13-WH-100 AdvanGate - master unit, double sided, EU frequency band (ETSI), Advantenna-p13 in white.
  • ADGT-ssEU-p13-WH-100 AdvanGate - slave unit, single sided, EU frequency band (ETSI), Advantenna-p13 in white.
  • ADGT-sdEU-p13-WH-100 AdvanGate - slave unit, double sided, EU frequency band (ETSI), Advantenna-p13 in white.
  • ADGT-msEU-p13-BK-100 AdvanGate - master unit, single sided, EU frequency band (ETSI), Advantenna-p13 in black.
  • ADGT-mdEU-p13-BK-100 AdvanGate - master unit, double sided, EU frequency band (ETSI), Advantenna-p13 in black.
  • ADGT-ssEU-p13-BK-100 AdvanGate - slave unit, single sided, EU frequency band (ETSI), Advantenna-p13 in black.
  • ADGT-sdEU-p13-BK-100 AdvanGate - slave unit, double sided, EU frequency band (ETSI), Advantenna-p13 in black.

Ideal for...

  • Loss prevention at retail stores
  • Loss prevention at warehouses
  • Product tracking at backdoors, entrances, corridors etc…
