Chainway

C66 Series

Handheld Computer

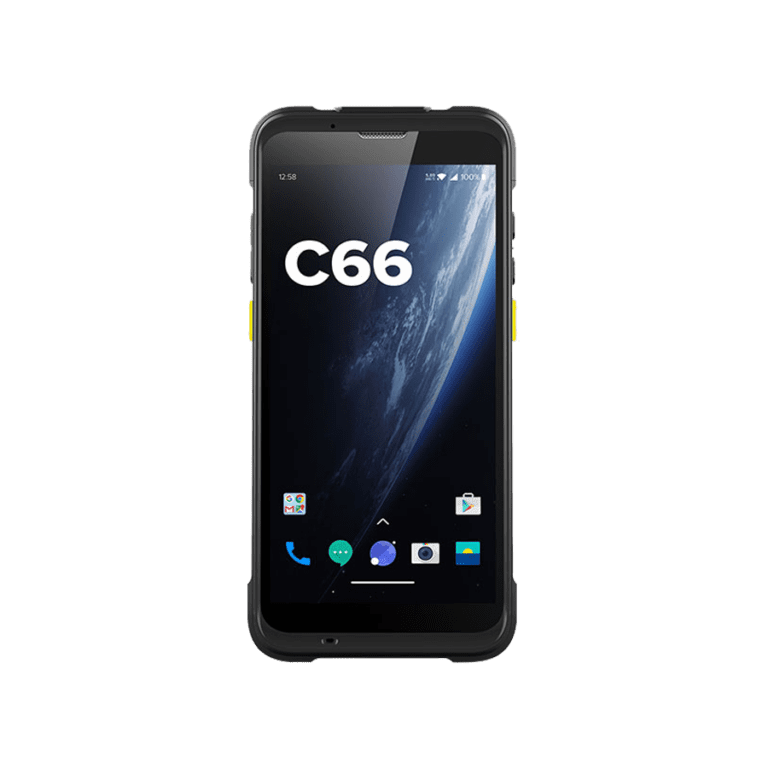

Chainway C66 Series is a rugged, highly expandable handheld computer featuring a Qualcomm octa-core processor and Android 11/13. It comes with a 5.5-inch HD display, optional barcode scanning, NFC, and supports Impinj Gen2X for enhanced RFID performance. The device offers quick charging and works with the R6 UHF sled for extended functionality.

Premium configurations add built-in UHF, fingerprint recognition, and a Wi-Fi 6–ready platform for faster and more secure connectivity. With its durable design, removable battery, and versatile accessory support, the C66 is well-suited for logistics, warehousing, manufacturing, retail, and other demanding applications.

Handheld Computer

Features

Options

Key Features

Rich functions as standard

The high-specification C66 Series features a 5.5-inch HD IPS touchscreen, Qualcomm octa-core processor, Android 11/13, GMS with Google Play, and Android Enterprise Recommended certification. It comes with a 13MP autofocus camera, fast-charge support, and a removable long-life battery. The device also supports Wi-Fi 6 on premium configurations for faster and more secure connectivity.

Versatile battery power

The C66 Series includes a powerful 4300mAh removable battery designed to last through high-intensity shifts. For more demanding operations, users can extend runtime with an optional 5200mAh booster battery or a 5200mAh pistol grip battery, ensuring stable and uninterrupted power throughout the workday.

Multi-function options

The C66 Series offers a wide range of optional functions, including integrated high-performance biometrics (fingerprint recognition), NFC, barcode scanning, and built-in UHF RFID using Impinj’s latest E510 chip with support for Gen2X for enhanced RFID performance. Intelligent volumetric measurement is also available, enabling quick length, width, and height capture with a single click.

Wide array of accessories

To further expand capabilities, Chainway provides a comprehensive accessory ecosystem: single-slot or multi-slot charge cradles, battery-only charging solutions, vehicle cradles, pistol grips with optional extended batteries, rugged protective boots, and the R6 UHF sled for significantly improved RFID range and performance. These accessories enhance usability, durability, and operational efficiency across diverse applications.

Models and Accessories

Models

  • C66-PE Android 9.0, Qualcomm(3+32)+5.5‘’ screen+NFC+4G+WIFI+BT+GPS+Camera

Accessories

  • CM2000-1-30 Power 30dBm, Antenna Gain 4dBi, 10M reading distance, Pistol incl.
  • CM2000-1-33 Power 33dBm, Antenna Gain 4dBi, 15M reading distance, Pistol incl.
  • R6 Sled Reader w/o barcode, with RB-C66-XR6 rugged bumper
  • CRD-66-MBC Single Charging Cradle, charge C66 main battery only, up to 4 slots
  • CRD-66-PBC Single Charging Cradle, charge C66 pistol battery only
  • CRD-66-MCC the base of 4-slots charging cradle set for 4 pieces of CRD-66-SCC or CRD-66-MBC or CRD-66-MCC, (need DCC1 adapter sold separately)

Ideal for...

  • Logistics
  • Warehousing
  • Manufacturing
  • Retail
  • Asset tracking
  • Power patrol inspection

Information for download

User Manual

Accessory Guide
