AdvanMat-300

Modular RFID floor mat

AdvanMat-300 is a high performance modular RFID floor mat that integrates multiple UHF RFID antennas inside a floor mat, for tracking people or objects. The antennas have circular polarisation and a radiation pattern characterised by a 40° beam width in one direction and a 90° beam width in the perpendicular direction (curtain beam shape).

This radiation pattern makes this system ideal for RFID applications such as loss prevention systems, portals, corridors, doors, etc. AdvanMat-300 is able to withstand 500kg.

AdvanMat-300

Modular RFID floor mat

AdvanMat-300 is a high performance modular RFID floor mat that integrates multiple UHF RFID antennas inside a floor mat, for tracking people or objects. The antennas have circular polarisation and a radiation pattern characterised by a 40° beam width in one direction and a 90° beam width in the perpendicular direction (curtain beam shape).

This radiation pattern makes this system ideal for RFID applications such as loss prevention systems, portals, corridors, doors, etc. AdvanMat-300 is able to withstand 500kg.

product features

AdvanMat modules can be combined in multiple ways giving the customers high flexibility regarding the width of protected areas.  After drilling the modules to the floor, AdvanMat-300 can be covered by any fabric.

Mechanical Specification

Technical Specification

Models and Accessories

SKU numbers/Models

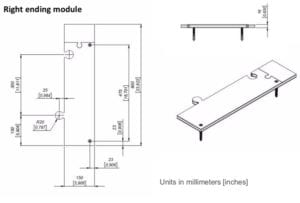

  • ADMT-P-R15-300 AdvanMat 300 with plastic finishing, right end module, 15cm.
  • ADMT-P-A30-13EU-300 AdvanMat 300 with plastic finishing, antenna module, 30cm, EU frequency band (ETSI)

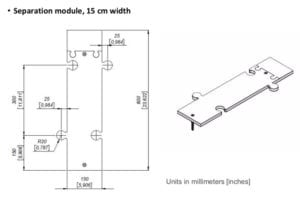

  • ADMT-P-S15-300 AdvanMat 300 with plastic finishing, separation module, 15cm.
  • ADMT-P-S30-300 AdvanMat 300 with plastic finishing, separation module, 30cm.
  • ADMT-P-L15-300 AdvanMat 300 with plastic finishing, left end module.

Ideal for...

  • Loss prevention systems.
  • People tracking at exhibitions.
  • Item tracking between backroom and sales floor at retail stores.
  • People and object tracking in general at doors and corridors.

Information for download
