Interactive system for fitting rooms

AdvanFitting-300 is an RFID-based system specially designed for fitting rooms at retail stores. It uses RFID technology and a touch screen to improve the customer shopping experience at retail stores.   The customer enters the fitting room with an item of interest, ti try on.  The RFID subsystem of AdvanFitting-300 detected the item automatically.  The AdvanFittin-300 screen shows the image, together with information like colours and sizes available, composition price etc… The customer will also receive recommendations of matching products and accessories.  They can interact with the touch screen, request another size or colour and browse other products etc…  When the customer reqywars another size or colour, the employee received a message in a portable device and brings the product to the customer.

Optionally, AdvanFitting-300 can also be connected ti the lighting system of the fitting room to give the user the option of setting the tone of the light through the touch screen, to create different ambiance in the fitting room.  By giving recommendations of matching products, AdvanFitting-300 increases the sales of the retailer.

Product Features

AdvanFitting-300 units contain everything needed to work on its own.  They are completely independent of each other, so they don’t need to be connected to create a system.  Each fitting room can be equipped with an AdvanFitting-300 unit that will work independently from the other fitting rooms.

Each fitting rim unit comprises of: RFID subsystem, with one reader and two antennas, 16″ touch screen, embedded computer, content and user interface management cloud0based software.  For the option of controlling the lighting though AdvanFitting-300, the fitting room has to be equipped with Philips Hue wireless lighting system.

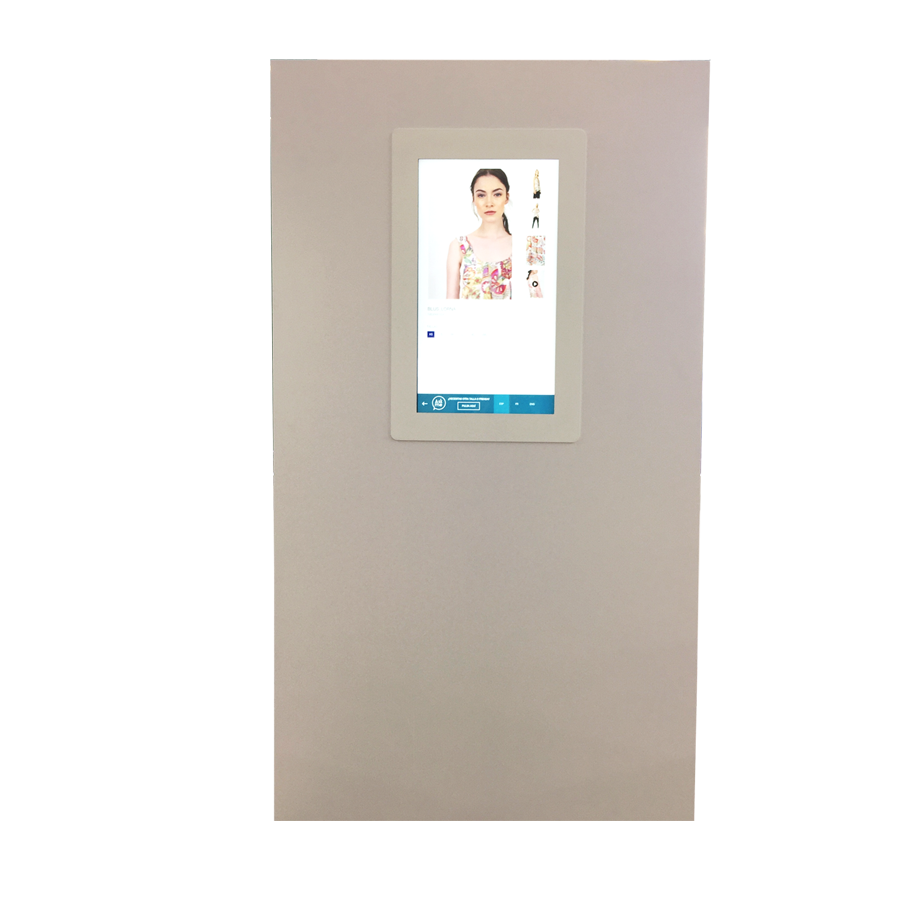

The AdvanFitting-300 unit is installed on the way of the fitting room.  The system is recessed into the wall, so all the electronics are hidden and the only thing visible to the shopped is the screen and optionally the frame.

Connection to AdvanCloud

The content and user interface of AdvanFitting can be updated remotely very easily by means of the AdvanCloud cloud-based software.

All the events are registered and stores in AdvanCloud.  This information can then be analysed for business intelligence purposed, such as:

Number of users that enter the fitting room.

Number go users that interact with the screen.

Products that customers bring inside the fitting room.

Recommended products that customers select on the screen.

Products that the customer request to be brought by an employee.

Mechanical specification: portrait screen orientation

Mechanical specification: landscape screen orientation

Technical Specification

Models and Accessories

SKU numbers/Models

  • ADFT-16th-EU-300 AdvanFitting300 with 16" touch screen, horizontal (landscape) orientation, EU frequency band (856,6MHz-867,6MHz)
  • ADFT-16tv-EU-300 AdvanFitting300 with 16" touch screen, vertical (portrait) orientation, EU frequency band (856,6MHz-867,6MHz)

Ideal for...

  • Fitting rooms at retail stores
